DNA Sequence Alignment (Local Alignment)

//출처 : https://en.wikipedia.org/wiki/Sequence_alignment

Sequence alignment - Wikipedia



*Global Alignment <-> Local Alignment *



Differences

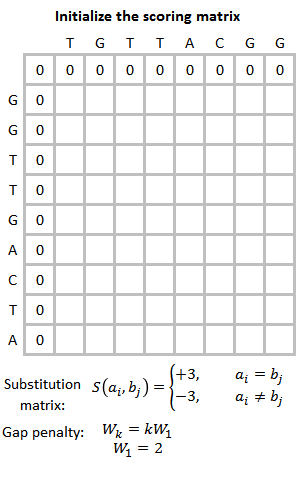

1. Build Scoring Matrix Step => if m[i][j]<0 then m[i][j] = 0

2. Back tracking Step => From Max to Zero

Global Alignment 와의 차이는 Scoring Matrix 에서 m[i][j]가 0보다 작은 값이면

0으로 채운다. 또한, Back Tracking 과정에서 Global Alignment 는 문자열의 길이만큼이 Alignment 가 되기 때문에

m[seq1.length][seq2.length] 부터 i,j가 0일때까지 back track하지만



Local Alignment 는 일치하는 값만 출력시키기 때문에 가장 큰 값에서부터, 0까지 출력시킨다.

파일 입출력을 포함해 Alignment 를 txt파일 형식으로 출력시키는 코드를 짜보았다.



#Java Source Code

import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.File;
import java.io.FileReader;
import java.io.FileWriter;
import java.io.IOException;

public class LocalAlignment {
static String seq1="";
static String seq2="";
static String seq1align = "";
static String seq2align = "";
static int m[][];
static int trace[][];
static int digonal;
static int up;
static int left;
static int max = 0;
public static void main(String args[]) throws IOException {
    File file = new File(args[0]);
    File fileq = new File(args[1]);
    File outputfile = new File(args[2]);
    BufferedReader bf = new BufferedReader(new FileReader(file));
    BufferedReader bfq = new BufferedReader(new FileReader(fileq));
    String temp = "";

    bf.readLine();
    while ((temp = bf.readLine())!=null) {
        seq1 += temp;
    }

    bfq.readLine();
    while ((temp = bfq.readLine())!=null) {
        seq2 += temp;
    }
    m = new int[seq2.length() + 1][seq1.length() + 1];
    trace = new int[seq2.length() + 1][seq1.length() + 1];

    m[0][0] = 0;
    for (int i = 1; i <= seq2.length(); i++) {
        m[i][0] = 0;
    }
    for (int i = 1; i <= seq1.length(); i++) {
        m[0][i] = 0;
    }

    for (int i = 1; i <= seq2.length(); i++) {
        for (int j = 1; j <= seq1.length(); j++) {
            if (seq2.charAt(i - 1) == seq1.charAt(j - 1)) {
                digonal = m[i - 1][j - 1] + 5;
            } else {
                digonal = m[i - 1][j - 1] - 4;
            }
            up = m[i - 1][j] - 10;
            left = m[i][j - 1] - 10;
            m[i][j] = Math.max(Math.max(digonal, up), left);

            if (m[i][j] == digonal) {
                trace[i][j] = 0;
            } else if (m[i][j] == up) {
                trace[i][j] = 1;
            } else if (m[i][j] == left) {
                trace[i][j] = 2;
            }
            if (m[i][j] <= 0) {
                m[i][j] = 0;
            }
        }
    }
    int max = 0;
    int maxi = 0, maxj = 0;
    for (int i = 0; i <= seq2.length(); i++) {
        for (int j = 0; j <= seq1.length(); j++) {
            if (max <= m[i][j]) {
                max = m[i][j];
                maxi = i;
                maxj = j;
            }
        }
    }
    System.out.println("max = " + max + " i = " + maxi + " j = " + maxj);

    printTrace(maxi, maxj);

    BufferedWriter bw = new BufferedWriter(new FileWriter(outputfile));
    bw.write(seq1align);
    bw.newLine();
    bw.newLine();
    bw.write(seq2align);
    bw.flush();

    bf.close();
    bfq.close();
    bw.close();

    System.out.println("종료");
}

public static void printTrace(int i, int j) {
    if (m[i][j]==0||(i == 0 && j == 0)) {
        return;
    }
    if (trace[i][j] == 0) {
        seq1align = seq1.charAt(j - 1)+seq1align;
        seq2align = seq2.charAt(i - 1)+seq2align;
        printTrace(i - 1, j - 1);
    }
    else if (trace[i][j] == 1) {
        seq1align = "-"+seq1align;
        seq2align = seq2.charAt(i-1)+seq2align;
        printTrace(i - 1, j);
    }
    else if(trace[i][j] == 2){
        seq1align = seq1.charAt(j-1)+seq1align;
        seq2align = "-"+seq2align;
        printTrace(i, j - 1);
    }
    else {
        return;
    }
}
